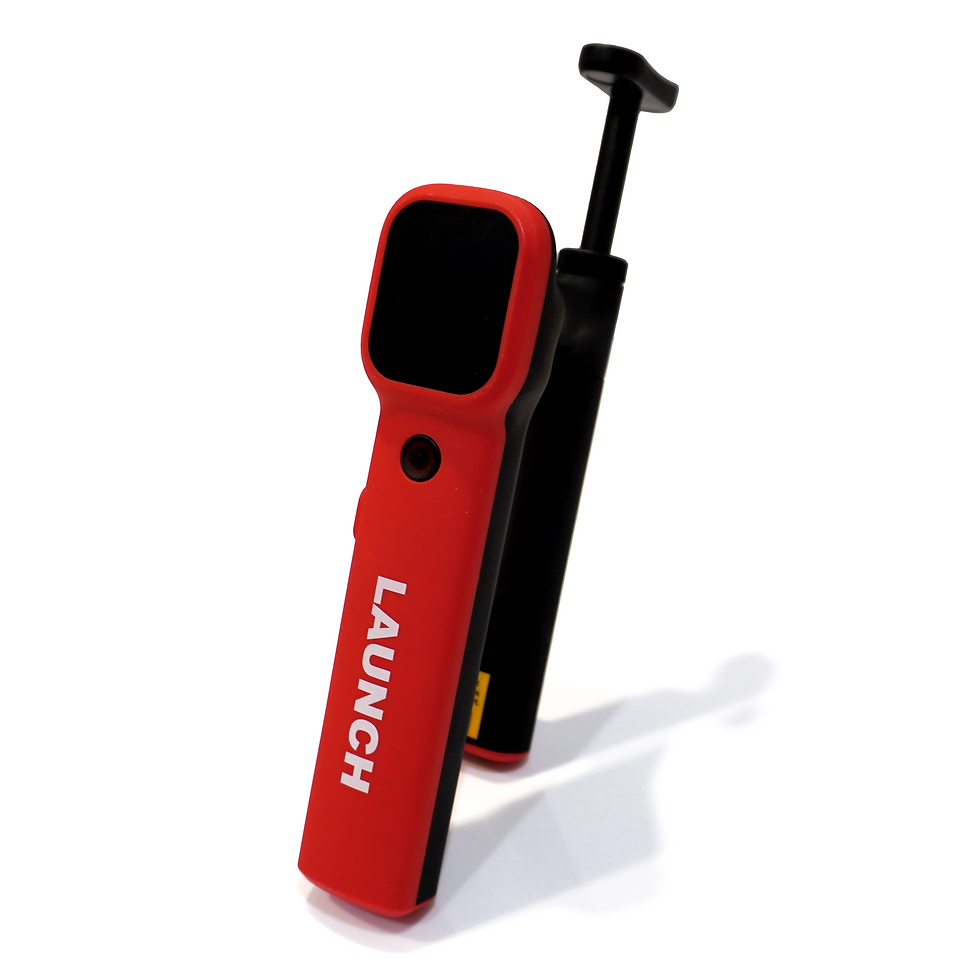

The VSP-828 video scope is designed for accessing narrow, curved spaces like evaporation boxes, combustion chambers, and three-way catalytic sensors. It captures vivid, clear and multi-angle videos and images, transferring them to a computer or smartphone display via a data cable for versatile inspections. Three versions with varying lens tubes are available for your choice.
Part Number 301181050
Contains 4 cables, as the following introduction.
Tesla Diagnostics Cable
12pin used for diagnostics on Model S/X manufactured before Sept. 2015
20pin used for diagnostics on Model S/X manufactured after Sept. 2015
Connect to diagnostics port located in the center console beneath the screen.
Tesla Airbag Cable
Mainly used to reset model 3/S/X second-hand airbag crash data.
Connect to airbag ECU Power, GND, CAN_L and CAN_H Pins.
Battery Test Cable 124
Used for Tesla 3 battery pack test.
Connect to battery pack low voltage communication port.
Battery Test Cable 152
The test line is used to test data streams for the EIC system of Model 3 and Model Y and test the battery pack.
Please check the cunnect picture on the left for reference
